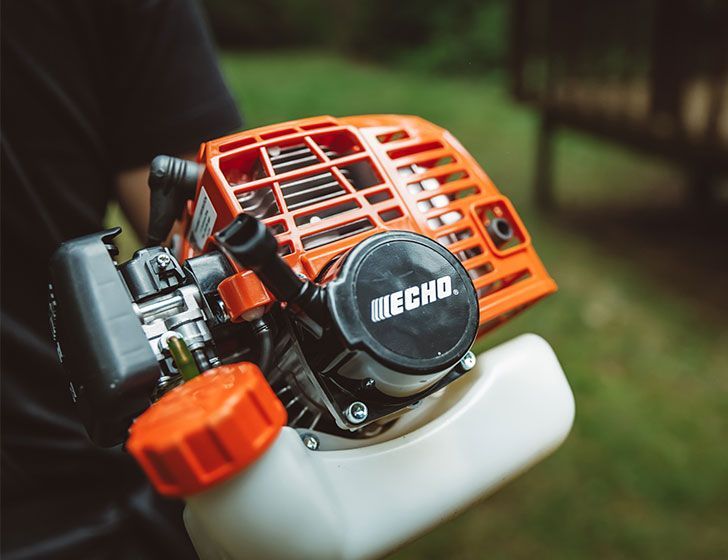

The SRM-222ES/L is powered by a 21.2cm³ engine. Like all ECHO engines it has been manufactured in Japan to the highest possible standards for power, efficiency and dependability.
L handle.
The loop handle combined with the unit's overall light weight gives superior maneuverability and freedom while working.
Light weight and maneuverable.
Weighing just 4.7kg with an ergonomic and balanced frame you'll get through jobs faster with greater accuracy.
Product Details.
| Engine displacement (cm³) | 21.2 |
|---|---|
| Output (kw) | 0.7 |
| Output (ps) | 1.0 |
| Dry Weight (kg) | 4.7 |
| Fuel tank capacity (l) | 0.40 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.45 |
| Carburettor | Diaphragm |
| Start Assist System | ES-start |
| Drive shaft diameter (mm) | 6.15 |
| Main pipe diameter (mm) | 25.0 |
| Gear reduction ratio | 1.36 |
| Standardised Nylon Head | G138 500 |
| Standardised Nylon Head (Item Number) | X047-000560 |
| Vibration Left handle/Right handle (m/s) Nylon head | 3.8 / 5.7 |
| Sound power level (dB(A)) Blade/Nylon head | - / 103.4 |
| Sound pressure level (dB(A)) Blade/Nylon head | - / 91.9 |
| CO² (g/kW・h) 1 | 1262 |
1This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
